Application directory

Table of Contents

The application directory is deployed from the product distribution and contains all executable files, assets, and other resources. All contents are static and immutable.

It is located at /usr/lib/era.

If the system runs in a Docker container, the specified paths are available only inside it.

Directory contents

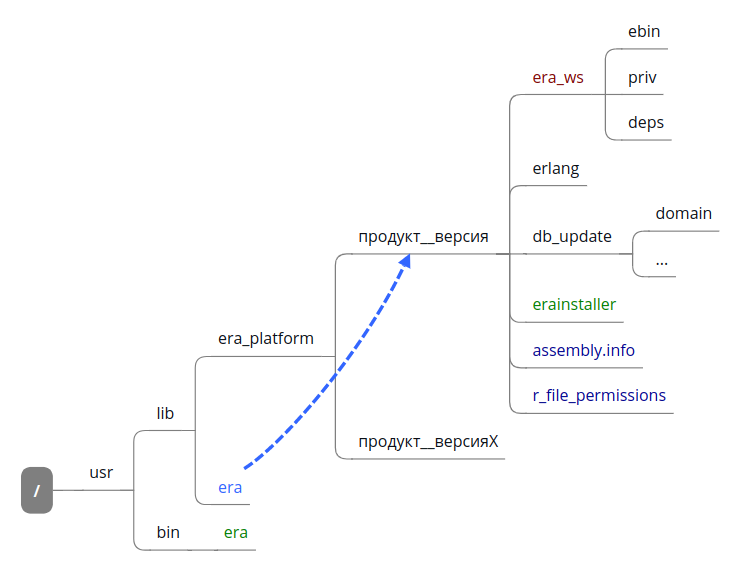

filetree
Table 1. Resource overview
Resource Purpose

era_platform

Directory containing various versions of the «Incoplax» system.

product__version

Directory containing static files of a specific version of a specific product based on the «Incoplax» system.

/usr/lib/era

Symlink to the directory with the current active version.

/usr/bin/era

Executable file of the Incoplax application. A decorator over eraInstaller.

era_…​

Application directories of the «Incoplax» system for the Erlang virtual machine.

Each contains:

  • ebin – executable application files for the Erlang virtual machine.

  • deps – used dependencies: Erlang applications.

  • priv – used dependencies: nix/win32 applications, various resources and assets.

erlang

Erlang virtual machine version in use. Global asset.

lib

Other virtual environments in use. Global assets.

db_update

DB update files.

eraInstaller

System installer executable.

assembly.info

System version information. Generated automatically when the product is built and the distribution is created.

era_file_permissions

Declaration of attributes of various files in the software directory.
